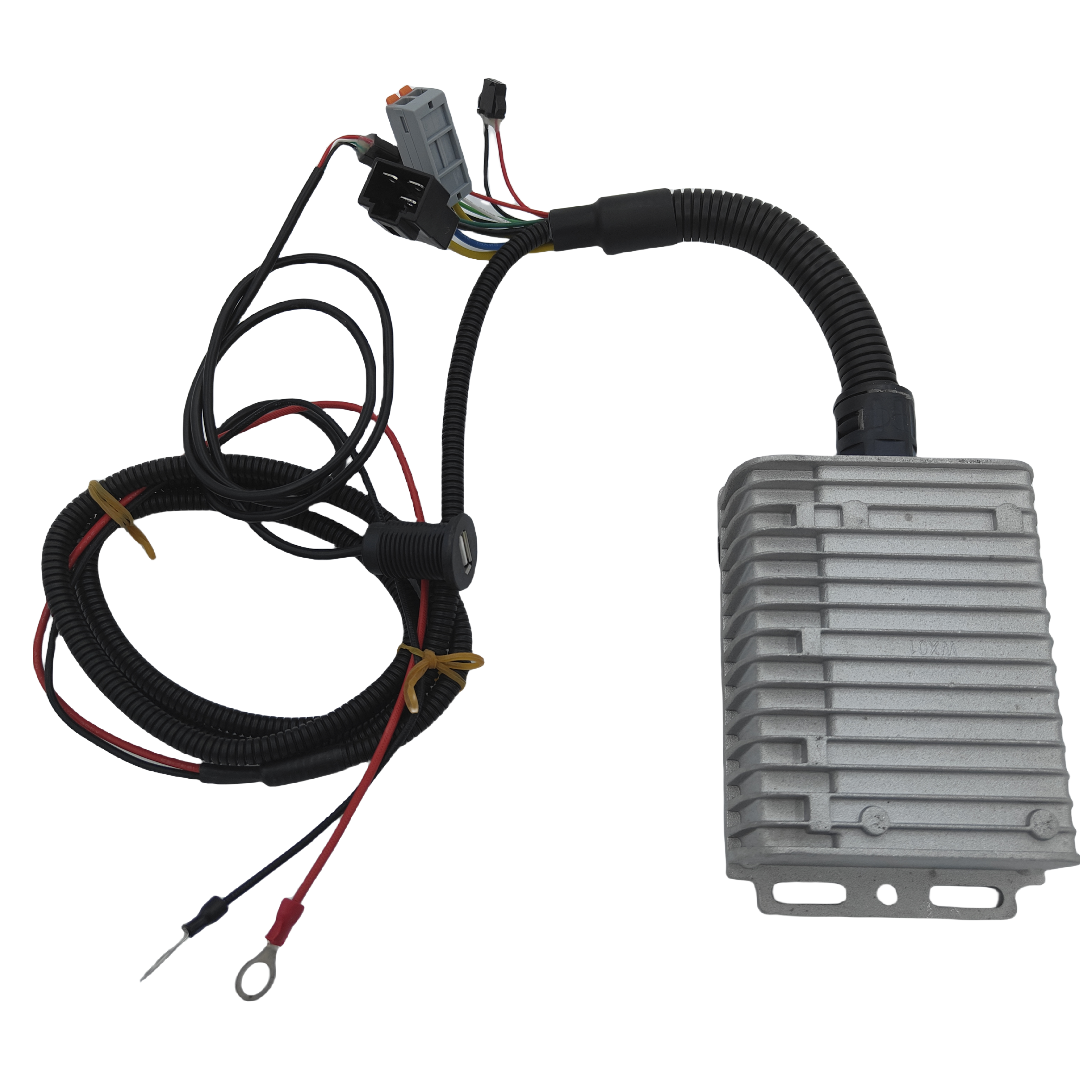

In simple terms, an isolated power converter electrically and physically separates the circuit into two parts, isolating the input from the output, thereby preventing direct current flow between the input and output (usually achieved using a transformer). A non-isolated power converter has only one circuit, and the current in the circuit can flow directly between the input and output.

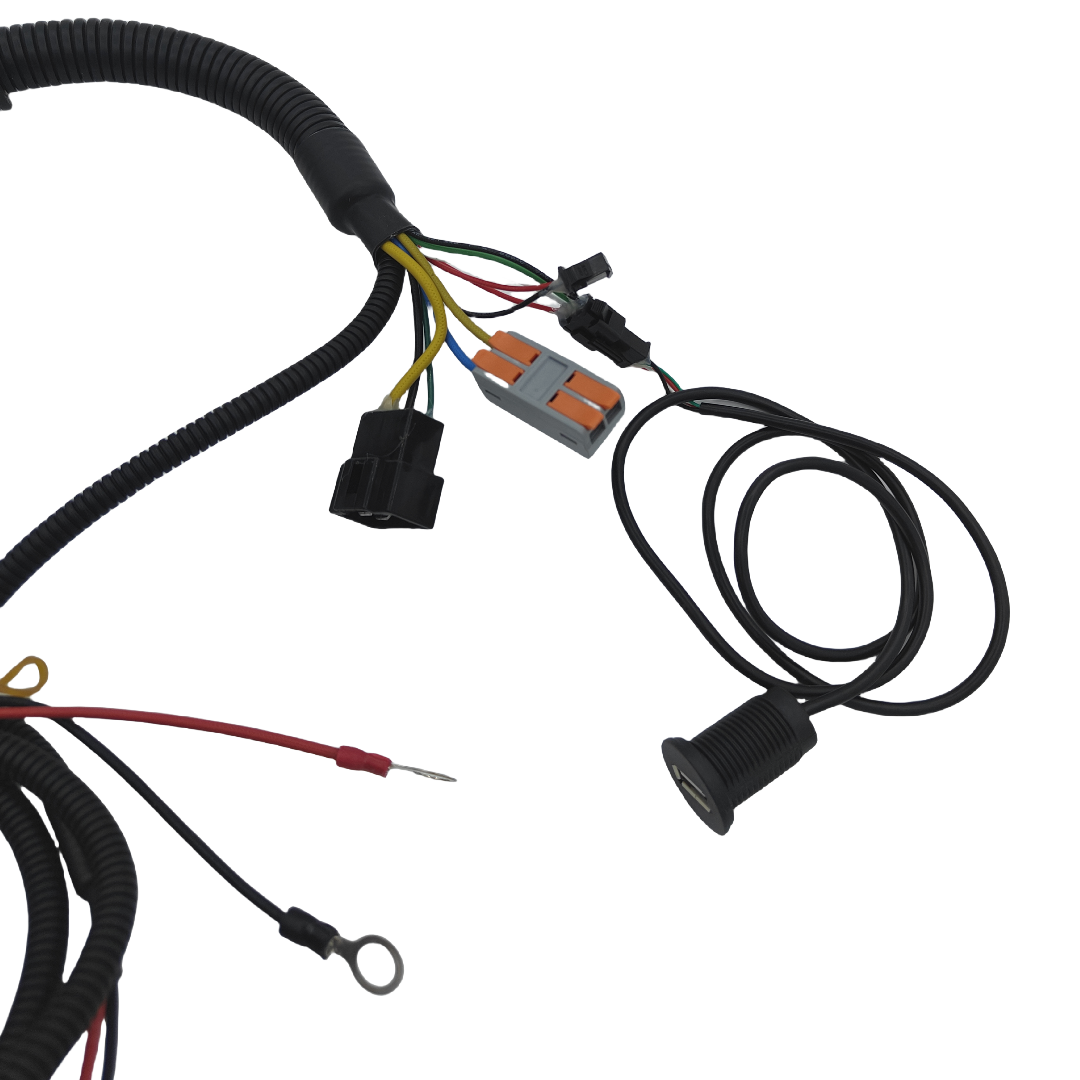

Mobile phone fast charging interface
Input positive pole
Input negative pole
Red positive pole black negative pole (connect to the original car charging port)
5V charging interface
Green ACC black public negative yellow 12V positive
Nine-number original car direct-on interface
Yellow positive pole blue negative pole (connect to spotlight, etc.)
12V power supply port
Yellow 12V positive (plug directly, do not adjust the line sequence)
Green ACC black input negative blue 12V negative
Niu original car direct-on interface
(plug directly, do not adjust the line sequence)
(connect to the positive and negative poles of the controller)
